Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in technical :



HAHN & KOLB

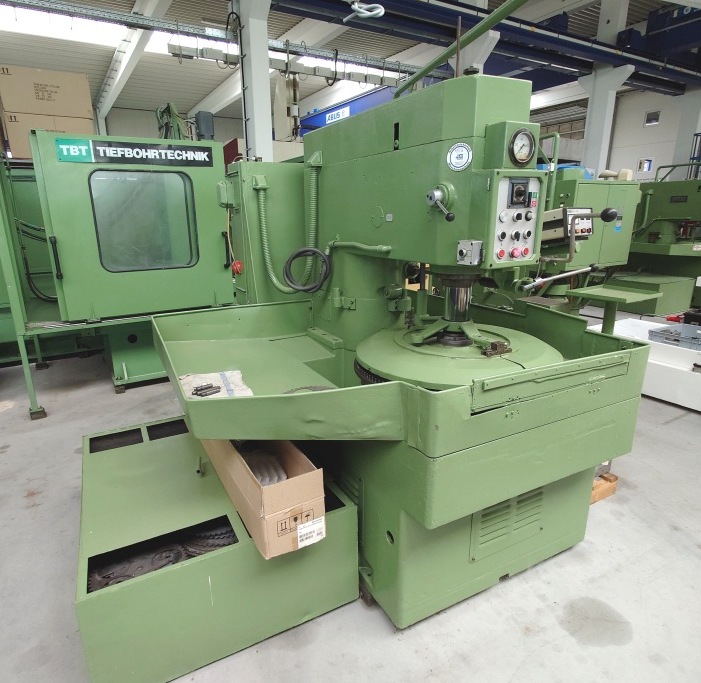

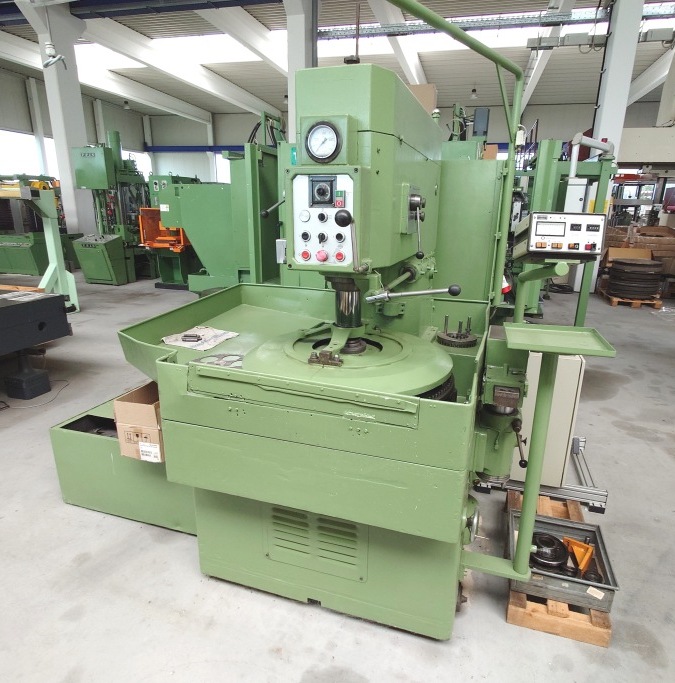

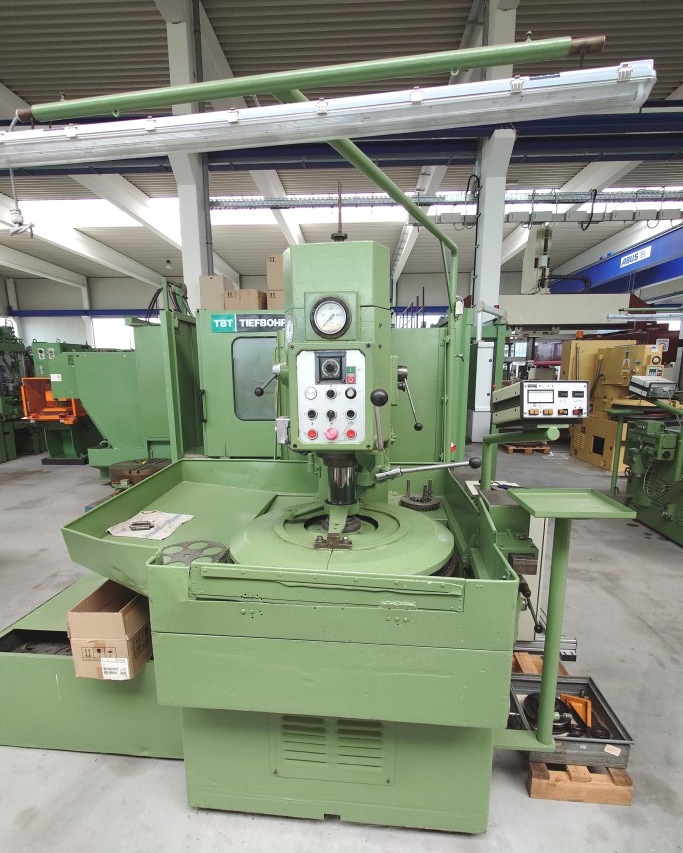

Double disc lapping and fine grinding machine

model       ZL 800 H

year         approx. 1974                                                     240 024 _____________________________________________________________



lapping / grinding wheel Ø, possible                                         755 - 810   mm

width of grinding ring, possible                                                200 - 265   mm

right now mounted wheel Ø / ring width                              790 / 245   mm



Max. Ø of workpiece transportation wheel, approx.                          306   mm

Max. distance between cast-iron disks                                              125   mm

Max. distance between fine-grinding disks                                     83/78   mm

Max. distance between the adapter flanges                                      260   mm



Upper lapping wheel speeds                                       30, 42, 60 and 84   rpm

Lower lapping wheel speeds                                       30, 42, 60 and 84   rpm

Workpiece transportation wheel centre drive              28, 40, 56 and 80   rpm



Spindle drive, each                                                                           6 / 8   kW

Total electrical load                                                11 kW  -  380 V  -  50   Hz

Weight                                                                                              4,200   kg



Accessories / Special Features



·    HAHN&KOLB / LAUER gauge control with a sensor inside the hollow spindle. During the work process the sensor measures continuously and ends the cycle automatically when the target measurement is reached.

·    HELLER Hydraulic Unit for setting the pressure steps. The grinding phases can be set on a time switch on the front of the machine.

·    Machine is presently equipped with fine grinding wheels suitable for highly accurate,  simultaneous parallel double-sided fine grinding jobs.

·    Motor-driven dressing / trueing device, height adjustable and swivelling, built on side of machine, with variable feed.

·    Dosing device for lapping fluid or rinsing agent with reservoir.

·    Various drive and pressure setting alternatives such as:  Synchronized speed/counter direction, single drive, entrainment of one or both wheels, clockwise/anticlockwise, etc.

·    Motor-driven height adjustable planetary drive for the transportation wheel.





Condition :     not yet installed, if bought “as is” special price possible

Delivery    :     immediately available, FCA Metzingen.

Payment   :     100 % Net, after conclusion of contract, before loading



We have other double sided lapping and fine grinding machines available on stock.  Please let us know your requirements.
